SecuGen (U20-ASF-BT2) OEM Module


Price:
Sale price$108.00

Description

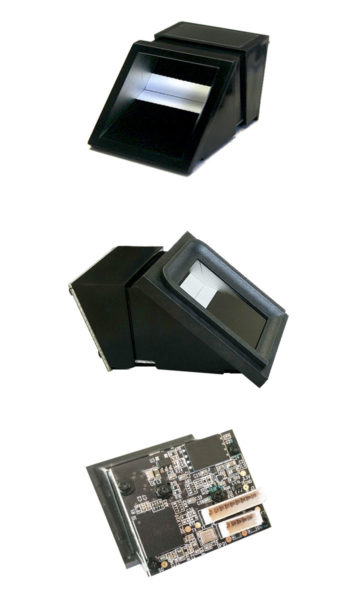

The U20-ASF-BT2 is an advanced, stand-alone fingerprint recognition system that captures and stores fingerprint data and identifies or verifies registered users. It is the wireless member of SecuGen’s Unity OEM Modules: all-in-one, stand-alone fingerprint systems designed to function entirely without an external PC.

With its ultra-compact and rugged design, the U20-ASF-BT2 can be integrated into access control units, door locks, ATMs, handheld devices, laptops, point of sale equipment, industrial equipment and many other kinds of products. It can communicate with external devices via Bluetooth and is interoperable with data input from SecuGen USB fingerprint readers for a wide variety of implementations.

The U20-ASF-BT2 consists of the SecuGen U20-A, an FBI-Certified FAP 20 Fingerprint Sensor, integrated with a programmable Single-Board Computer (SBC) that includes on-board CPU, SDRAM, flash memory, and a Bluetooth module.

Applications

_______________________________________________________________________________

  • Physical access control systems
  • Door-lock systems (indoor/outdoor)
  • Time & attendance systems
  • Cabinet safes and vaults (gun safes, safe deposit boxes)
  • Vehicle access control
  • Automatic teller machines (ATM)
  • Point-of-sale machines (POS), kiosks
  • Verification of credit cards/smart cards
  • Secure network systems
  • Laptop and tablet integration
  • Handheld and mobile devices

Features

_______________________________________________________________________________

  • Class 2 Bluetooth transceiver
  • Dual-mode Bluetooth / Low Energy (BLE) radio
  • Supports Serial Port Profile (SPP) for Bluetooth Classic
  • Provides emulation SPP for BLE (iOS interface support)
  • Small chip antenna
  • Rugged, high image quality fingerprint sensor that is both FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant) and STQC Certified. Meets FBI Image Quality standards
  • Built upon patented technologies that allow rapid capture of high-contrast, low-distortion fingerprint images
  • Smart Capture ensures high quality imaging even from traditionally difficult fingerprints, such as dry or moist fingers, as well as under very bright conditions, such as outdoors in sunlight
  • Auto-On for automatic detection of a finger when placed on the sensor
  • Fingerprint Management System (FMS) software that works right out of the box
  • Open Linux OS that lets you develop custom applications running on the device
  • Large fingerprint template storage capacity and support for SG400, ISO/ICE 19794-2, and single view ANSI INCITS 378-2004 templates
  • NIST MINEX Certified and FIPS 201 Compliant embedded fingerprint algorithms for template generation and matching
  • High-speed fingerprint matching in verification mode (1:1) or identification mode (1:N, using built-in SecuSearch Engine)
  • Interoperable with data input from SecuGen USB fingerprint readers to support a wide variety of implementations
  • Responds to serial commands that use the same protocol supported by SecuGen’s SDA04P-series OEM modules
